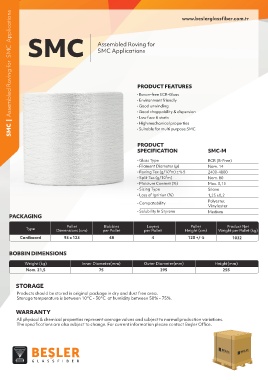

Page 24 - Beşler Glassfiber | Online Catalog 2025

SMC | Assembled Roving for SMC Applications
www.beslerglassfiber.com.tr

SMC Assembled Roving for

SMC Applications

PRODUCT FEATURES

. Boron-free ECR-Glass
. Environment friendly
. Good unwinding
. Good choppability & dispersion
. Low fuzz & static
. High mechanical properties
. Suitable for multi purpose SMC

PRODUCT
SPECIFICATION SMC-M

. Glass Type ECR (B-Free)
. Filament Diameter (µ) Nom. 14
. Roving Tex (g/10³m) ± % 5 2400-4800
. Split Tex (g/10³m) Nom. 80
. Moisture Content (%) Max. 0,15
. Sizing Type Silane
. Loss of Ignition (%) 1,25 ±0,2

. Compatability Polyester,
Vinylester
. Solubility In Styrene Medium
PACKAGING

Pallet Bobbins Layers Pallet Product Net
Type Dimensions (cm) per Pallet per Pallet Height (cm) Weight per Pallet (kg)
Cardboard 93 x 123 48 4 120 +/-5 1032

BOBBIN DIMENSIONS

Weight (kg) Inner Diameter(mm) Outer Diameter(mm) Height(mm)
Nom. 21,5 75 295 255

STORAGE
Products should be stored in original package in dry and dust free area. Products should be stored in original package in dry and dust free area.
Storage temperature is between 10°C - 30°C at humidity between 50% - 75%. Storage temperature is between 10°C - 30°C at humidity between 50% - 75%.

WARRANTY

All physical & chemical properties represent average values and subject to normal production variations. All physical & chemical properties represent average values and subject to normal production variations.
The specifications are also subject to change. For current information please contact Beşler Office. The specifications are also subject to change. For current information please contact Beşler Office.
