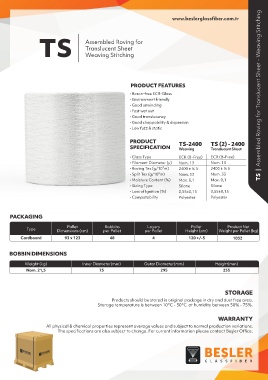

Page 21 - Beşler Glassfiber | Online Catalog 2025

www.beslerglassfiber.com.tr

TS Assembled Roving for

Translucent Sheet
Weaving Stitching

PRODUCT FEATURES
. Boron-free ECR-Glass TS | Assembled Roving for Translucent Sheet - Weaving Stitching
. Environment friendly
. Good unwinding
. Fast wet out
. Good translucency
. Good choppability & dispersion
. Low fuzz & static

PRODUCT TS-2400 TS (2) - 2400
SPECIFICATION Weaving Translucent Sheet

. Glass Type ECR (B-Free) ECR (B-Free)
. Filament Diameter (µ) Nom. 13 Nom. 13
. Roving Tex (g/10³m) 2400 ± % 5 2400 ± % 5
. Split Tex (g/10³m) Nom. 33 Nom. 33
. Moisture Content (%) Max. 0,1 Max. 0,1
. Sizing Type Silane Silane
. Loss of Ignition (%) 0,55±0,15 0,55±0,15
. Compatability Polyester Polyester

PACKAGING

Pallet Bobbins Layers Pallet Product Net
Type Dimensions (cm) per Pallet per Pallet Height (cm) Weight per Pallet (kg)
Cardboard 93 x 123 48 4 120 +/-5 1032

BOBBIN DIMENSIONS

Weight (kg) Inner Diameter(mm) Outer Diameter(mm) Height(mm)
Nom. 21,5 75 295 255

STORAGE
Products should be stored in original package in dry and dust free area. Products should be stored in original package in dry and dust free area.
Storage temperature is between 10°C - 30°C at humidity between 50% - 75%. Storage temperature is between 10°C - 30°C at humidity between 50% - 75%.

WARRANTY

All physical & chemical properties represent average values and subject to normal production variations. All physical & chemical properties represent average values and subject to normal production variations.
The specifications are also subject to change. For current information please contact Beşler Office. The specifications are also subject to change. For current information please contact Beşler Office.
