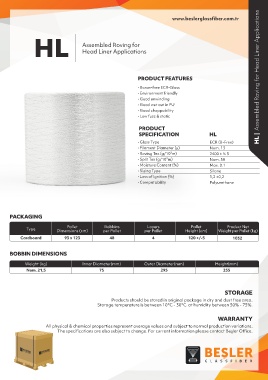

HL Assembled Roving for

Head Liner Applications

PRODUCT FEATURES HL | Assembled Roving for Head Liner Applications

. Boron-free ECR-Glass
. Environment friendly
. Good unwinding
. Good wet out in PU
. Good choppability
. Low fuzz & static

PRODUCT
SPECIFICATION HL

. Glass Type ECR (B-Free)
. Filament Diameter (µ) Nom. 13
. Roving Tex (g/10³m) 2400 ± % 5
. Split Tex (g/10³m) Nom. 50
. Moisture Content (%) Max. 0.1
. Sizing Type Silane
. Loss of Ignition (%) 1,2 ±0,2
. Compatability Polyurethane

PACKAGING

Pallet Bobbins Layers Pallet Product Net
Type Dimensions (cm) per Pallet per Pallet Height (cm) Weight per Pallet (kg)
Cardboard 93 x 123 48 4 120 +/-5 1032

BOBBIN DIMENSIONS

Weight (kg) Inner Diameter(mm) Outer Diameter(mm) Height(mm)
Nom. 21,5 75 295 255

STORAGE
Products should be stored in original package in dry and dust free area. Products should be stored in original package in dry and dust free area.
Storage temperature is between 10°C - 30°C at humidity between 50% - 75%. Storage temperature is between 10°C - 30°C at humidity between 50% - 75%.

WARRANTY

All physical & chemical properties represent average values and subject to normal production variations. All physical & chemical properties represent average values and subject to normal production variations.
The specifications are also subject to change. For current information please contact Beşler Office. The specifications are also subject to change. For current information please contact Beşler Office.
