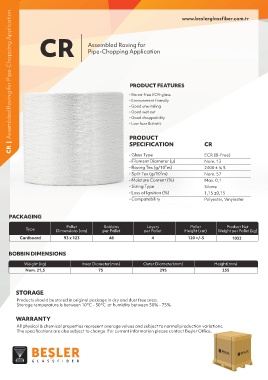

Page 20 - Beşler Glassfiber | Online Catalog 2025

CR | Assembled Roving for Pipe-Chopping Application
www.beslerglassfiber.com.tr

CR Assembled Roving for

Pipe-Chopping Application

PRODUCT FEATURES

. Boron-free ECR-glass
. Environment friendly
. Good unwinding
. Good wet out
. Good choppability
. Low fuzz & static

PRODUCT
SPECIFICATION CR

. Glass Type ECR (B-Free)
. Filament Diameter (µ) Nom. 13
. Roving Tex (g/10³m) 2400 ± % 5
. Split Tex (g/10³m) Nom. 57
. Moisture Content (%) Max. 0,1
. Sizing Type Silane
. Loss of Ignition (%) 1,15 ±0,15
. Compatability Polyester, Vinylester

PACKAGING

Pallet Bobbins Layers Pallet Product Net
Type Dimensions (cm) per Pallet per Pallet Height (cm) Weight per Pallet (kg)
Cardboard 93 x 123 48 4 120 +/-5 1032

BOBBIN DIMENSIONS

Weight (kg) Inner Diameter(mm) Outer Diameter(mm) Height(mm)
Nom. 21,5 75 295 255

STORAGE
Products should be stored in original package in dry and dust free area. Products should be stored in original package in dry and dust free area.
Storage temperature is between 10°C - 30°C at humidity between 50% - 75%. Storage temperature is between 10°C - 30°C at humidity between 50% - 75%.

WARRANTY

All physical & chemical properties represent average values and subject to normal production variations. All physical & chemical properties represent average values and subject to normal production variations.
The specifications are also subject to change. For current information please contact Beşler Office. The specifications are also subject to change. For current information please contact Beşler Office.
