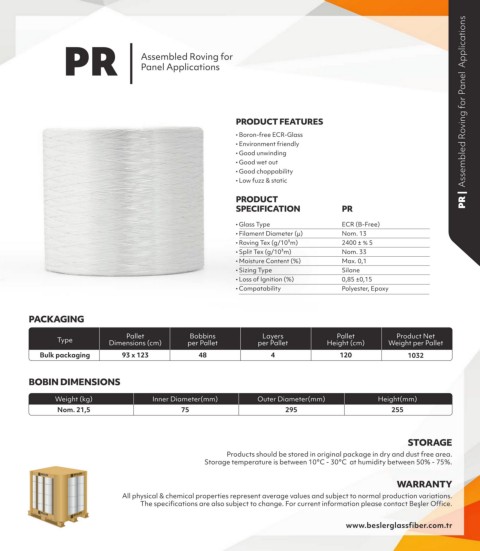

PR | Assembled Roving for

Panel Applications

PRODUCT FEATURES PR | Assembled Roving for Panel Applications

. Boron-free ECR-Glass
. Environment friendly
. Good unwinding
. Good wet out
. Good choppability
. Low fuzz & static

PRODUCT
SPECIFICATION PR

. Glass Type ECR (B-Free)
. Filament Diameter (µ) Nom. 13
. Roving Tex (g/10³m) 2400 ± % 5
. Split Tex (g/10³m) Nom. 33
. Moisture Content (%) Max. 0,1
. Sizing Type Silane
. Loss of Ignition (%) 0,85 ±0,15
. Compatability Polyester, Epoxy

PACKAGING

Pallet Bobbins Layers Pallet Product Net
Type Dimensions (cm) per Pallet per Pallet Height (cm) Weight per Pallet
Bulk packaging 93 x 123 48 4 120 1032

BOBIN DIMENSIONS

Weight (kg) Inner Diameter(mm) Outer Diameter(mm) Height(mm)
Nom. 21,5 75 295 255

STORAGE
Products should be stored in original package in dry and dust free area.
Storage temperature is between 10°C - 30°C at humidity between 50% - 75%.

WARRANTY
All physical & chemical properties represent average values and subject to normal production variations.
The specifications are also subject to change. For current information please contact Beşler Office.

www.beslerglassfiber.com.tr
