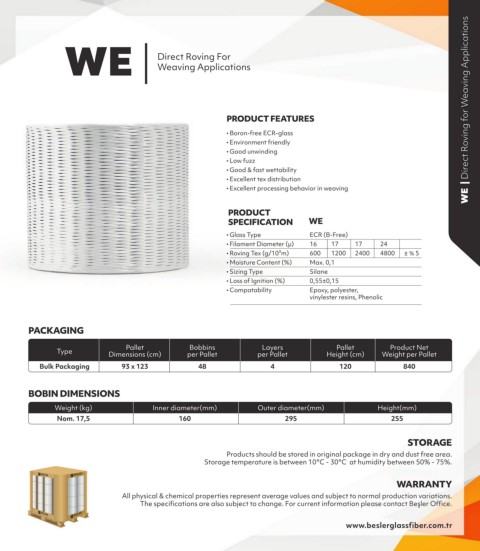

Page 15 - Beşler Glassfiber | Online Katalog 2023

WE | Direct Roving For

Weaving Applications

PRODUCT FEATURES WE | Direct Roving for Weaving Applications
. Boron-free ECR-glass
. Environment friendly
. Good unwinding
. Low fuzz
. Good & fast wettability
. Excellent tex distribution
. Excellent processing behavior in weaving

PRODUCT
SPECIFICATION WE
. Glass Type ECR (B-Free)
. Filament Diameter (µ) 16 17 17 24
. Roving Tex (g/10³m) 600 1200 2400 4800 ± % 5
. Moisture Content (%) Max. 0,1
. Sizing Type Silane
. Loss of Ignition (%) 0,55±0,15
. Compatability Epoxy, polyester,
vinylester resins, Phenolic

PACKAGING

Pallet Bobbins Layers Pallet Product Net
Type Dimensions (cm) per Pallet per Pallet Height (cm) Weight per Pallet
Bulk Packaging 93 x 123 48 4 120 840

BOBIN DIMENSIONS

Weight (kg) Inner diameter(mm) Outer diameter(mm) Height(mm)
Nom. 17,5 160 295 255

STORAGE
Products should be stored in original package in dry and dust free area.
Storage temperature is between 10°C - 30°C at humidity between 50% - 75%.

WARRANTY
All physical & chemical properties represent average values and subject to normal production variations.
The specifications are also subject to change. For current information please contact Beşler Office.

www.beslerglassfiber.com.tr
